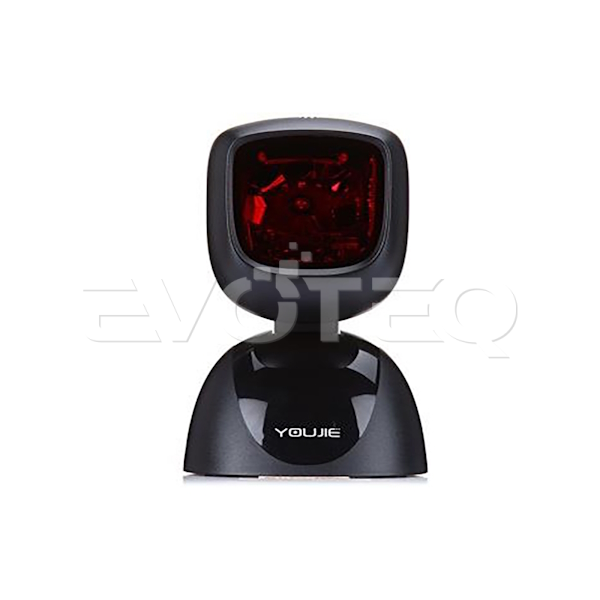

Honeywell Youjie YJ5900 Omnidirectional Scanner – USB

Barcode Scanner

Product Description

Honeywell Youjie YJ5900 Omnidirectional Scanner – USB

YJ5900, omnidirectional hands-free compact laser scanner with increased scanning performance is perfect for various convenience stores and specialty stores. YJ 5900 provides aggressive first-pass scanning at 1,650 scans/second, greatly increasing customer satisfaction and operator efficiency.

Features:

Omnidirectional / parallel-line mode: Provides a high first-pass rate with easy and flexible operations
Sleep Mode with IR Activation: Effectively reduces power consumption, extends product life and lowers operating costs
Stylish ID design: Esaily assembled and mounted onto various countertops and desktops, helping to conserve space
High performance and quality with low failure rate: Provides maximum uptime with a more stable performance and a lower failure rate
Ideal choice for small to mid-volume scanning in retail application: Ideal for convenience stores, liquor stores and pharmacies, etc.

Mechanical

Dimensions (LxWxH)	87mm x 98mm x 170mm
Weight	382g

Electrical

Input Voltage	5VDC ± 0.5V
Operating Power (typical)	1.4W (275 mA@ 5V)
Standby Power (typical)	1.2W (230 mA@ 5V)
DC Transformers	Class2; 5.2 VDC @ 1A
Laser class	Class2: IEC60825-1
Certification	CE, EN55022 Class A; IEC 60950-1, IEC62471

Environmental

Operating Temperature	-20°C – 40°C
Storage Temperature	-40°C – 60°C
Humidity	5% to 95% relative humidity, non-condensing
Light	4842 Lux (450 foot-candles)
Drop	Designed to withstand 1m drops

Perfomance

Light Source	Visible Laser Diode, 650 nm ± 10 nm
Audible Indicators	7 tones or no beep
Visual Indicators	Green= ready to scan, Red= good read
Host System Interfaces	USB, RS232 Serial
Scan Pattern	Omnidirectional: 5 fields with 4 lines in each direction
Scan Speed	1650 scan lines per second
Print Contrast	35% minimum reflectance difference
Decoding ability	read all standard 1D barcodes
