Honeywell Youjie ZL2200 Laser Barcode Scanner

Barcode Scanner

Product Description

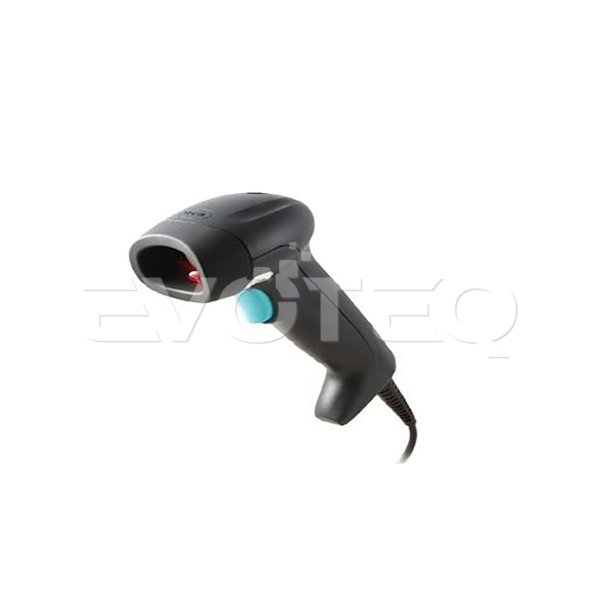

Honeywell Youjie ZL2200 Laser Barcode Scanner

Youjie ZL2200 is a cost-effective single-line laser scanner with optimized performance. As an entry level bar code scanner targeting the low to middle segment of the AIDC markets, ZL2200 is ideal for various scanning applications like retail POS for small supermarkets and convenience stores, document scanning for office automation, and mail and parcels processing for post offices.

Features:

Scan performance at an affordable price ratio: Highly cost effective, ideal for small- to medium-sized enterprises
Proprietary scanning platform: Revolutionary scanning platform design with pending intellectual property rights (IPR)
Outstanding scanning performance: Provides faster scanning, larger depth of field, wider scanning angle and zero error rates.
Ergonomic form factor design: Gun shape design comfortably fit in any hand size, reducing fatigue over long time use
High compatibility: “Plug-and-play” with “no extra setting” enables quick integration with various office devices.

Mechanical

Dimensions (LxWxH)	165mm x 65mm x 80mm
Weight	182g

Electrical

Input Voltage	5 VDC ± 0.25V
Power (typical)	700mW (140 mA@ 5V, standby) 1000mW (200 mA@ 5V, decoding)
Electro Magnetic Compatibility	EN55022 Class B

Environmental

Operating Temperature	0°C – 40°C
Storage Temperature	-40°C – 60°C
Humidity	5% to 95% relative humidity, non-condensing
Light	0 – 100,000 lux
Drop	Designed to withstand 1m drops
Environmental sealing	sealed to resist airborne particulate contaminants

Perfomance

Light Source	Visible Laser Diode, 650 nm ± 10 nm
Visual Indicators	Red = laser shines, ready to scan; Green = successfully decoding
Host System Interfaces	USB
Scan Pattern	single line
Scan Speed	100 scan lines per second
Scan Angle	horizontal 55°
Print Contrast	20% minimum reflectance difference
Pitch, Skew	68°, 52°
Decode Capabilities	All standard 1D bar codes
