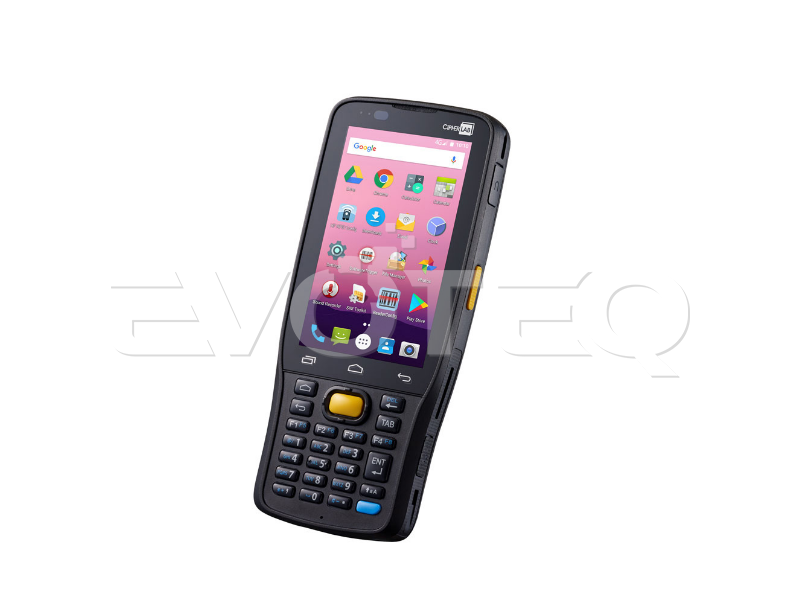

RK25 Series Rugged Mobile Computer

Industries:

Retail

Field Mobility

Light Warehousing

Transportation

Logistic

Mobile Computer & Handheld

Product Description

CipherLab's RK95 is a powerful handheld terminal that steps up the data collection game in the warehouse environments. Running on the latest Android operating system and today’s most powerful processor, the RK95 also comes with Google enterprise-oriented certifications to ensure the device's productivity stays efficient for now and the future. Crafted in excellent reading capability, wireless connection, industrial ruggedness, user interface and power consumption, the RK95 is surely an investment that is smart and cost effective for your business.

RK25

OS	Android 7.0 with GMS (Upgradeable to Android 9.0 with GMS) / Android 9.0 with GMS (Upgradeable to Android 11.0 with GMS) / Android 11.0 with GMS
CPU	Quad-core 1.4 GHz Cortex A53
Memory	2GB RAM / 16GB Flash 3GB RAM/ 32GB Flash1
Expansion	Micro SD card slot with SDHC support (up to 32GB)
SIM / SAM	1 SIM slot and 1 optional SIM/SAM slot
Operating power	Replaceable and rechargeable 3.8V, 4000 mAh Li-Polymer battery
Working hours1	Minimum 8 hours (2D imager)
Wireless communication	WLAN: GSM: Quad Band (850/900/1800/1900Mhz) TD-SCDMA: Band34, Band39 WCDMA: Band1, Band2, Band5, Band8, TDD-LTE: Band38, Band39, Band40, Band41 FDD-LTE: Band1,Band2, Band3, Band5, Band7, Band8, Band20 WLAN: IEEE 802.11 a/b/g/n/ac/e/d/h/i/r/k/v/w dual band WPAN: Bluetooth® Class II, V4.0/V4.1/V4.2 BLE, V2.1 with Enhanced Data Rate (EDR) GPS4: GPS, Galileo, GLONASS, BeiDou, AGPS
Barcode scanning	2D imager / Mid-Range 2D imager
RFID	HF RFID 13.56 MHz frequency which supports ISO14443 TYPE A,B, and ISO15693 Support NFC (Peer-to-Peer, Card Reader, Card Emulation)
Camera	Autofocus 8 megapixels with LED flash
Display	4'' WVGA 480 (W) x 800 (H), Corning Gorilla Glass, TN LCD
Size	168 x 73.8 x 26 mm
Weight	292 g (2D imager with battery)
Impact resistance	Standard: 1.5 m (5 ft.) multiple drops onto concrete Impact resistance:1.8 m (6 ft.) MIL-STD-810G IP65 / 300 tumbles at 0.5 m

RK25 UHF RFID Reader

Pairing	Electrical 8-pin connection
RFID Standard	EPC Class1 Gen2 V2
Antenna	Circularly polarized
RFID performance	Fastest read rate: 700+ tag/sec Read range : 8+ m (26+ ft)
Frequency range	US: 902~928 MHz. EU: 865~868 MHz TW: Rechargeable 3.7V 5500 mAh Li-ion Battery AU: 920~924MHz. NZ: 920~924MHz IN: 856.7~866.9MHz. Morocco: 867.7~867.9MHz
Battery	3.6v, 3000mAh Li-ion battery
Size	Without RK25: 152.4 mm x 85.3 mm x 158.8 mm With RK25:181.4 mm x 85.3 mm x 162.9 mm
Barcode scanning	Without RK25: 353.4 g With RK25: 632.7 g
Ruggedness	1.2m drop (With RK25). IP54
Software	RFID Android Software Development Kit, EZConfig, EZEdit
Keypad	28-Key Numeric, 38-Key Numeric/Function keypads, 52-Key Alphanumeric keypads, Terminal Emulation keypads (TN5250, TN3270 and VT) , with LED backlight
Size	216 mm x 80 mm x 30 mm
Weight	400 g (3000 mAh) / 445 g (6000 mAh), with 2D imager 435 g (3000 mAh) / 480 g (6000 mAh), with Extended-Range 2D imager Cold Storage: 485 g, with 2D imager/ 520 g, with Extended-Range 2D imager
Operating Temperature	Standard:-20°C to 50°C / -4°F to 122°F Cold Storage:-30°C to 50°C/-22°F to 122°F
Impact resistance	Standard:1.8 m / 2.4 m with Rubber Boot, multiple drops onto concrete (MIL-STD-810G), crossing operating temperature Cold Storage: 1.5 m multiple drops onto concrete (MIL-STD-810G), crossing operating temperature down to -30 degrees Celsius
